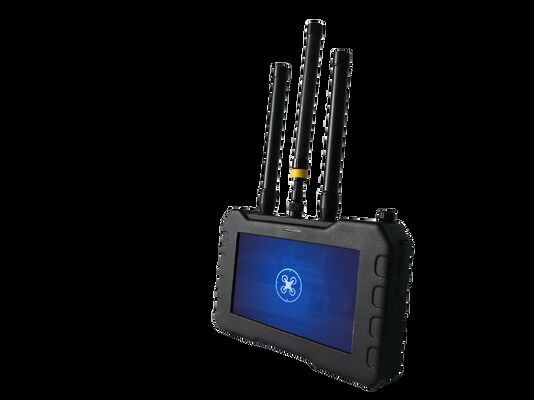

Portable Drone Detector with 70MHz–6.2GHz Full-Band Detection, FPV Live Video Capture, and Real-Time Video Transmission Interception
| Lugar de origen | Shénzhen |
|---|---|
| Nombre de la marca | Ladasky |
| Número de modelo | LDSK-TZ-40D |
| Cantidad de orden mínima | 1 |
| Precio | $1810 |
| Tiempo de entrega | 5-8 días |
| Condiciones de pago | LC, D/A, T/T, D/P, Unión Occidental, |
| Capacidad de la fuente | 5000 unidades/mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Detección de banda completa | Capaz de detectar todo el rango de 70 MHz a 6,2 GHz. | Cobertura integral de banda FPV | Totalmente compatible con la detección de transmisión de vídeo analógico dentro del rango de 500 MHz |
|---|---|---|---|
| interceptación de video | Intercepta todas las transmisiones de vídeo analógico, lo que permite el análisis de "vista en | Almacenamiento de video | El vídeo capturado en tiempo real se puede almacenar como prueba. |
| Colaboración en equipo | Cuenta con un modo 1+N con diseño de dispositivo maestro-esclavo, lo que permite vincular alarmas y | Cuenta con un modo 1+N con diseño de dispositivo maestro-esclavo, lo que permite vincular alarmas y | Viene con una pulsera multifuncional que admite múltiples métodos de transporte para facilitar su us |
| Resaltar | 70MHz–6.2GHz Full-Band Portable Drone Detector,FPV Live Video Capture Anti-Drone Detection System,Real-Time Video Transmission Interception UAV Detection System |
||
Descripción de producto
Portable Multi-Band Anti-Drone Detector
70MHz–6.2GHz Full-Band Handheld UAV Detection System with FPV Detection, Live Video Capture, and Real-Time Video Transmission Interception
Challenges in Signal-Dense Environments
In urban zones and event venues, drone signals are often overwhelmed by background RF noise, creating security vulnerabilities where conventional equipment fails to reliably detect targets.
Advanced Detection Solutions
- Intelligent Full-Band Detection: Covers 70MHz–6.2GHz spectrum with precise signal separation capabilities for reliable operation in cluttered RF environments
- Accurate Multi-Model Recognition: Built-in signature library identifies common commercial, DIY, and FPV drones in real time
Evidence Collection Capabilities
Traditional counter-drone methods only disperse threats without capturing evidence of intent, making legal accountability challenging.
- Real-Time Video Transmission Interception: Instantly captures and displays the drone pilot's live video feed in real time
- One-Click Evidence Archiving: Built-in storage automatically records timestamped video to establish complete evidence chains

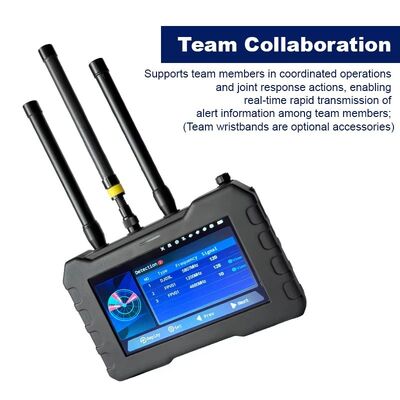

- Master-Slave Coordinated Positioning: Multiple units network together to guide ground personnel in rapidly locating drone operators
Technical Specifications
| Identification Types | Supports mainstream drones including DJI, Autel, Hubsan, plus FPV racing drones and DIY drones |
|---|---|
| Frequency Range | Customizable scanning from 70 MHz to 6.2 GHz Default detection bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (other bands customizable) |
| FPV Video Transmission Detection | Supports all analog video transmissions within 500 MHz–6 GHz range (user-customizable) |
| Detection Radius | ≥ 1.5 km (line-of-sight, clean electromagnetic environment) |
| Video Capture Distance | ≥ 1.5 km (line-of-sight, clean electromagnetic environment) |
| Video Storage Capacity | ≥32 GB memory card, maximum 256GB |
| Detection Response Time | ≤3s (8 bands); ≤5s (12 bands) |
| Battery Life | ≥5 hours (default screen brightness and operating mode) |
| Alarm Modes | Sound, vibration, and light |

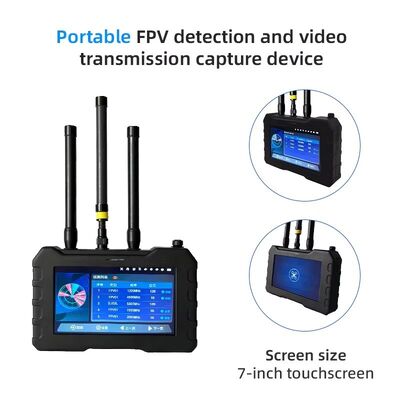

| Screen Size | 7-inch touchscreen |

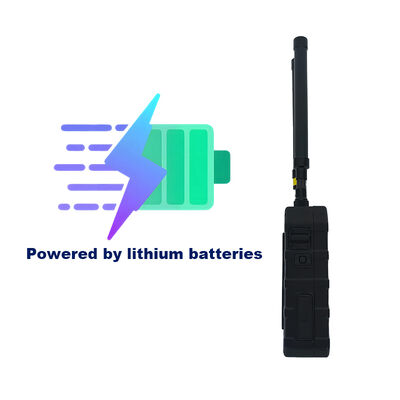

| Power Supply | Lithium battery powered |
| Battery Capacity | 7000mAh |
| Device Weight | ≤ 1.2kg |
| Device Size | Length × Width × Height: 212mm × 137mm × 41mm |
Frequently Asked Questions
What is the effective detection distance of the device?
Under good visibility and clean electromagnetic environment, the detection radius for common drones is ≥ 1.5 kilometers, and video capture distance also reaches over 1.5 kilometers.
What drone brands and types does it support?
Supports mainstream brands including DJI, Autel, Hubsan, while covering various drone types such as FPV racing aircraft, DIY modified aircraft, and fixed wing aircraft.
How long is the device's battery life?
Built-in 7000mAh lithium battery provides ≥ 5 hours of operation under default screen brightness and working mode, with support for charging while using a power bank.
Can it be used in complex electromagnetic environments?
Yes. The device features intelligent signal sorting capability, effectively filtering out Wi-Fi, Bluetooth, and other interference while maintaining stable detection performance in complex electromagnetic environments such as urban areas and event sites.
How to store and export captured videos?
The device includes a built-in memory card (standard 32GB, maximum 256GB) with videos automatically stored by timestamp. Data can be directly exported via the Type-C port by connecting to a computer.
Does it support collaborative work among multiple users?
Yes. The device supports 1+N master-slave mode with optional wristwatch terminal for multi-machine alarm linkage, collaborative positioning, and task division, making it suitable for regional control and team operations.
How to maintain and upgrade the equipment?
Regular power-on self-checks are recommended to keep software current. The system supports firmware upgrades via Type-C connection to a computer, continuously updating the drone signature library and enhancing recognition capabilities.
