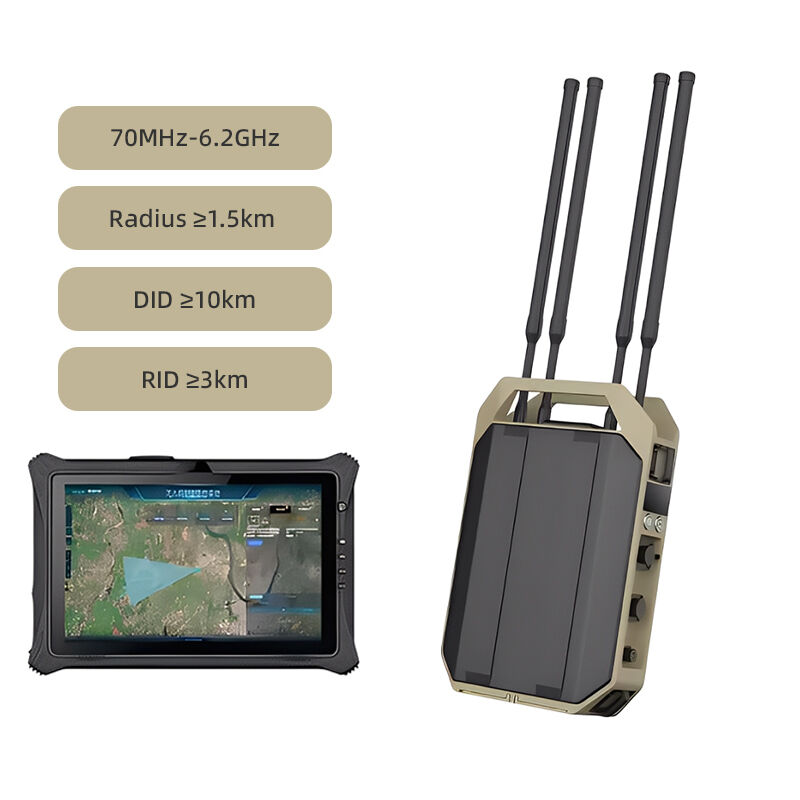

LDK-C04 All‑Scenario UAV Signal Detection & Positioning Equipment | 70MHz‑6.2GHz

Key Features

• 70MHz–6.2GHz wideband signal detection with customizable bands
• Real‑time UAV and controller positioning with latitude, longitude and azimuth
• FPV analog video signal capture and real‑time display
• Max detection distance up to 12km for mainstream UAV systems
• Sound, light and vibration three‑mode alarm
• Multi‑terminal information push for team collaboration
• Supports backpack, fixed and vehicle‑mounted deployment
• Long battery life up to 6 hours for continuous operation
• Fast response within 3–5 seconds
• High compatibility with mainstream UAV models

Technical Specifications

• Model: TTSK‑C04
• Detection frequency: 70MHz–6.2GHz (customizable)
• Detection range: Mainstream UAV ≥10km; FPV ≥2km
• Positioning range: DID ≥10km; RID ≥3km
• Positioning accuracy: ≤10m
• FPV video capture: 500MHz–6GHz
• Alarm mode: Sound, light, vibration
• Battery life: ≥6 hours
• Weight: ≤8kg
• Dimensions: 400×165×500mm
• Deployment: Backpack / Fixed / Vehicle‑mounted
