70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense

  • 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
  • 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
  • 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
  • 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
  • 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
  • 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
  • 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
Lugar de origen Porcelana
Nombre de la marca LDSK
Número de modelo LDSK-TDZ-2C
Cantidad de orden mínima 1 Uds.
Precio $54300
Tiempo de entrega 5-8 días de trabajo
Condiciones de pago LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente 5000 unidades por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

El Wechat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Resaltar

70MHz–6GHz Anti Drone System

,

360° Detection Drone Detection and Jamming System

,

Integrated Detection and Jamming Fixed Drone Defense System
Deja un mensaje
Descripción de producto
70MHz–6GHz Fixed 360° Anti-Drone System
Detection, Jamming & Spoofing Integrated Defense Solution
The LDSK-TDZ-2C Fixed Drone Detection and Defense System integrates a drone detection subsystem, directional RF jamming subsystem, and omnidirectional RF jamming subsystem into one comprehensive solution. It is capable of detecting, identifying, and neutralizing unauthorized drones in real time.
By effectively disrupting drone control and navigation links, the system can force drones to hover, land, or return to their take-off point, providing reliable protection of low-altitude airspace and preventing unauthorized intrusion into restricted zones.
Designed for high-performance security applications, the LDSK-TDZ-2C offers long-range detection and defense capabilities and supports fully automated operation, enabling continuous drone monitoring and countermeasures without human intervention.
Technical Parameters
Parameter Specification
Detection Frequency Bands 70MHz-6GHz full frequency band scanning, detection and display
Key Detection Frequency Bands 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
FPV Analog Video Transmission Signal Detection 500MHz~6GHz scan and display
FPV Analog Video Transmission Signal Detection Distance ≥1.5km (support viewing real-time analog video)
Detection Distance ≥10km (depends on working conditions)
Detection Range Horizontal: 360°; Vertical: -90° to 90°
Detection Response Time ≤10s from power-on to drone detection and reporting
Direction Finding Accuracy ≤±3° (RMS, under site conditions with no obvious obstructions or electromagnetic interference)
Detection Display Distance, altitude, speed, position (longitude/latitude accurate to 1m), drone model, SN code, take-off point, return point, real-time trajectory
Jamming Distance ≥3km (depends on working conditions)
Interference Azimuth Coverage 360° horizontal
Jamming Frequency Bands (Omnidirectional) 420MHz-480MHz (50W), 650MHz-730MHz (50W), 740MHz-840MHz (50W), 860MHz-930MHz (50W), 1080MHz-1200MHz (50W), 1200MHz-1340MHz (50W), 1340MHz-1500MHz (50W), 1560MHz-1620MHz (50W), 4880MHz-5080MHz (50W), 5100MHz-5300MHz (50W), 5870MHz-6060MHz (50W), 5720MHz-5860MHz (100W), 2385MHz-2490MHz (100W)
Jamming Frequency Bands (Directional) 850MHz-950MHz (50W), 2385MHz-2490MHz (50W), 5720MHz-5860MHz (50W), 5100MHz-5300MHz (30W)
Jamming Response Time ≤7s
Omnidirectional Jamming Device Weight ≤31kg each (2 devices)
Omnidirectional Jamming Device Size 520mm * 465mm * 275mm
Directional Jamming Device Weight ≤5kg each (4 devices)
Directional Jamming Device Size 320mm * 320mm * 110mm
Detection Device Weight ≤15kg
Detection Device Size Diameter 400mm * Height 370mm
Total Device Weight ≤150kg
Total Device Size Diameter 1000mm * Height 2400mm
Working Temperature -40℃ to 60℃
Cloud Platform Features
  • Unattended and manual control functions with fully automated tracking interference
  • Blacklist and whitelist management
  • High-definition GIS system with environment and deployment information
  • Log playback and statistical records including drone intrusion logs and reports
  • GPS positioning with automatic north calibration
  • Drone signal extraction and addition to feature library
  • Device status monitoring (offline, standby, power-off, abnormal)

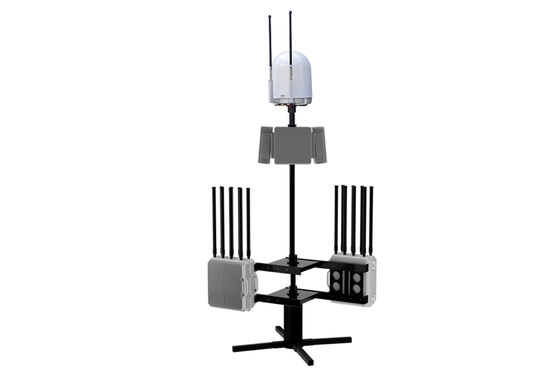

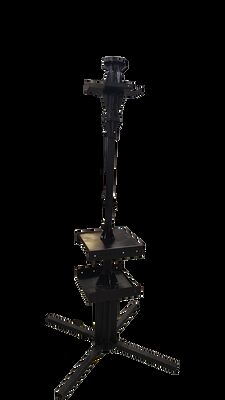

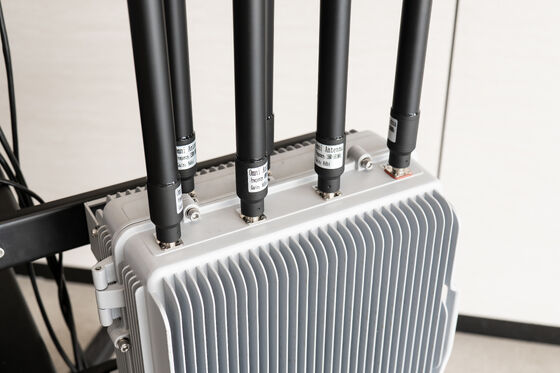

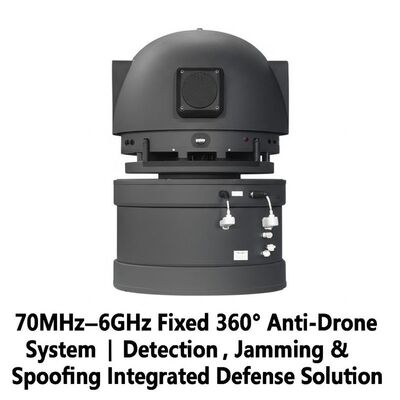

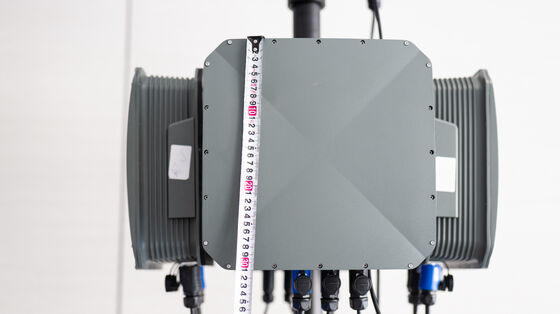

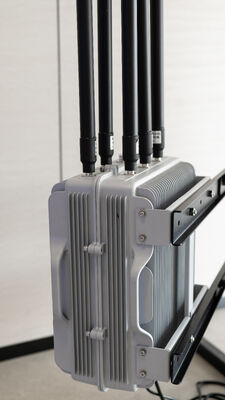

System Images
70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense 0 70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense 1
Why Choose Us?
Professional expertise, sincere service, prompt responses, and an excellent technical team ensure a comfortable purchasing experience.
Order Process
  1. Send us products you're interested in
  2. We provide detailed information and quotations
  3. Consult with us about any product questions
  4. Confirm order and receive payment information
  5. We send package confirmation and tracking number
  6. Provide feedback after receiving goods
