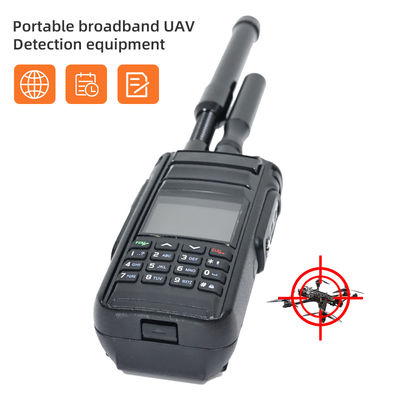

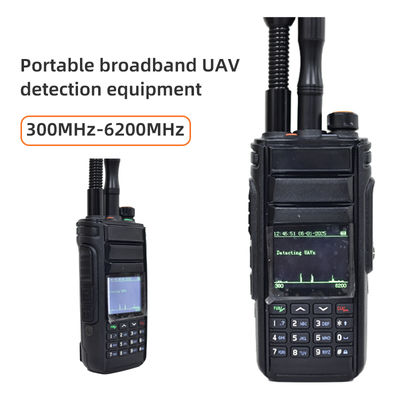

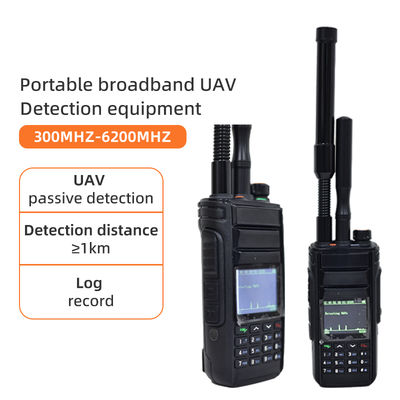

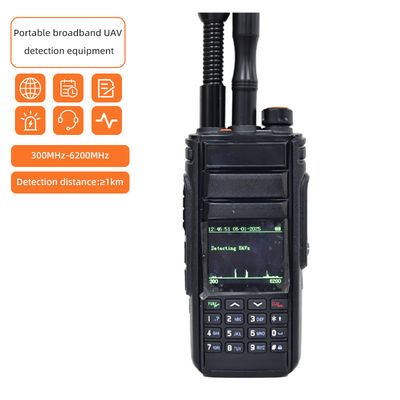

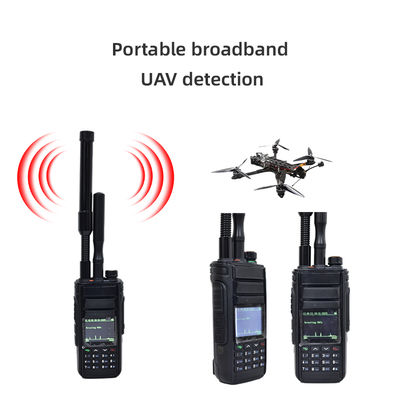

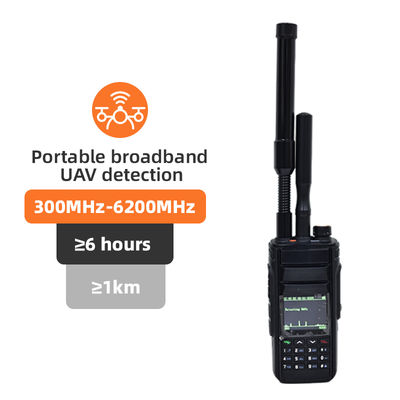

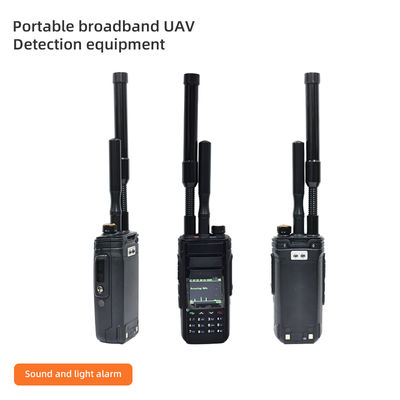

LDKW07 Lightweight Portable Drone Detector with High Sensitivity and Long Battery Life for UAV Detection
| Lugar de origen | Guangdong, China |
|---|---|
| Nombre de la marca | LDSK |
| Número de modelo | Ldskwk02 |
| Cantidad de orden mínima | 1 |
| Precio | $400 |
| Detalles de empaquetado | CAJA DE CARTÓN |
| Tiempo de entrega | 1 día de trabajo |
| Condiciones de pago | D/A, D/P, T/T, Western Union, Moneygram, PayPal |
| Capacidad de la fuente | 5000pcs por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Banda de frecuencia de detección | 300MHz – 6200MHz | Radio de detección | ≥ 1 km (condiciones típicas) |
|---|---|---|---|
| Tiempo de respuesta | 3 ~ 5s | Tiempo de resistencia | 3 ~ 4h |
| Destacar | Dispositivo de detección anti drones de 6000MHz, dispositivo de detección anti drones portátil | Modos de alarma | Auriculares, alarma sonora y luminosa. |
| Capacidad del registro de alarmas | ≥ 500 registros de alarma | Duración de la batería | ≥ 6 horas (batería única) |
| Resaltar | Lightweight Portable Drone Detector,High Sensitivity UAV Detector,Long Battery Life Drone Detector |
||
Descripción de producto
LDKW07 Portable Drone Detector — 300–6200 MHz FPV & DJI UAV Detection System
Product Overview
The LDKW07 Portable Broadband UAV Detection Equipment is a lightweight, highly integrated drone detector built for rapid, reliable detection of mainstream rotary-wing drones (DJI, Docom) and DIY FPV drones. It passively scans a very wide frequency range (300 MHz–6200 MHz), supports multi-channel simultaneous scanning with dual antennas, and delivers fast detection, high sensitivity, long range, and a low false-alarm rate — all in a compact, easy-to-use package.
Key Benefits (Why choose LDKW07)
-
Wideband coverage: detects both OFDM HD image transmission and FM analog FPV transmissions across 300–6200 MHz.
-
Long detection distance: reliably detects drones at ≥1 km under typical conditions.
-
High sensitivity: detection sensitivity better than -96 dBm for weak signals.
-
Portable and durable: light (≈500 g) with removable lithium battery and type-C charging — 6+ hours runtime per battery.
-
Fast, flexible scanning: default scanning, key frequency band scanning, and user-defined feature library.
-
Low false alarms: multi-channel scanning + dual antenna design reduces false positives.
-
Easy records & export: alarm log (≥500 records) and firmware/feature updates via MicroUSB.
-
Multi-language UI: English, Chinese, Russian.
Main Functions & Features
-
Passive UAV detection: Identifies OFDM HD image transmission used by mainstream consumer drones and FM analog image transmission used by many FPV systems.
-
Multi-mode scanning: Default mode, key band scan, and custom feature-library scanning (user can modify/add via USB).
-
Real-time spectrum display: Visualize signal strength across 300–6200 MHz.
-
Alarm methods: Headphone alarm, external sound & light alarm; headphone audio output supported.
-
Data & upgrade: Alarm log export and firmware upgrade via MicroUSB.
-
Field usability: Low power consumption design, compact dimensions, and easy operation for security teams or mobile patrols.
Technical Specifications
| Item | Description |
|---|---|
| Model | LDKW07 |
| Receiving Frequency Range | 300 MHz – 6200 MHz |
| Detectable Signal Types | OFDM HD image transmission and FM analog image transmission (FPV) |
| Detection Distance | ≥ 1 km (typical conditions) |
| Detection Sensitivity | Better than -96 dBm |
| Alarm Modes | Headphones, sound and light alarm |
| Alarm Log Capacity | ≥ 500 alarm records |
| Upgrade / Data Export Interface | MicroUSB |
| Power Supply | Removable lithium battery (Type-C charging) |
| Battery Life | ≥ 6 hours (single battery) |
| Display Interface | Built-in screen, supports English/Chinese/Russian |
| Operation Modes | Default scan / Key frequency scan / Custom frequency scan |
| Dimensions (Host) | 135 × 60 × 35 mm (excluding antenna) |
| Weight | ≈ 500 g (including one battery) |
| Working Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | ≤ 90% RH (non-condensing) |
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Dongguan City, China.
Q: What shipping methods are available?
A: We support all major shipping methods including DHL, UPS, TNT, FedEx, and sea shipment.
Q: What is the typical delivery time?
A: Normal orders ship within 5-7 working days. Bulk orders may require additional time.
Q: Can I customize labels and logos?
A: Yes, we support custom labeling and branding.
Q: What is your minimum order quantity?
A: MOQ ranges from 1 to 20 sets depending on your requirements.
Q: What if I receive a defective product?
A: We maintain strict quality control but will address any issues promptly with replacements or compensation.
