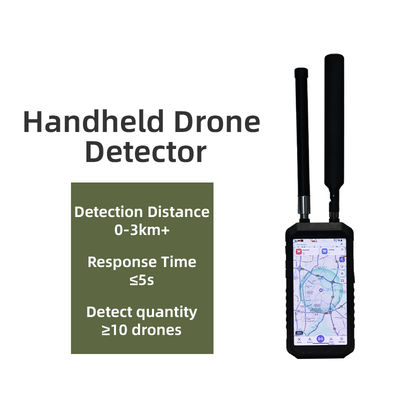

Handheld Drone Detector drone detection L03 drone detection system drones radiation detection with location of pilot and drone

Working Principle

Passive detection, does not emit any electromagnetic signals

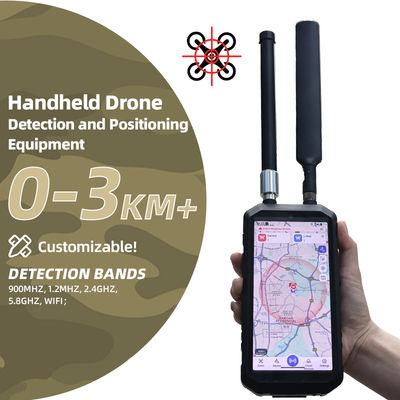

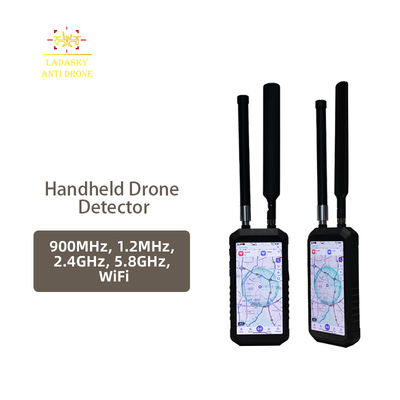

Detection Bands

900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；

Sensitivity

≤-100dBm

Detection Distance

0~3km+ (Different exist due to different environments and drone type)

Response Time

≤5s

Detection Quantity

≥10 Drones (Simultaneous)

Number of Drone Trajectories

≥10 Drones (Simultaneous)

Position Accuracy

≤3m (Available for the drones can be decoded)

Drone Library (Geo-Locaation)

DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands

Dynamic Detection Movement Speed

≥60km/h  (Available for the drones can be decoded)

Screen Size

6.0 Inch

Battery Capacity

12000mAh

Endurance

3～4h

External Interface

Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1

Charging Power

DC9V, 2A

Charging Time

≤3h(0%-100%)

Power Consumption

≤15W

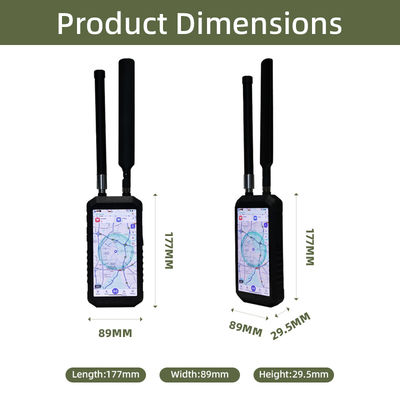

Size

177mm * 89mm * 29.5mm(±2mm)

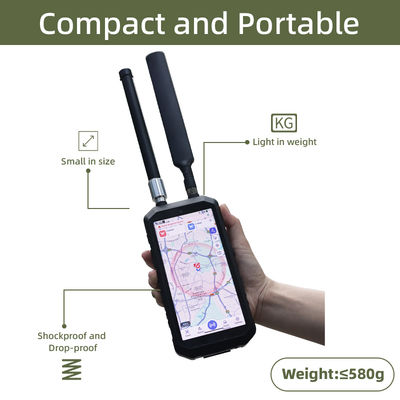

Weight

≤580g(±0.05kg,without antenna)

≤46g per antenna

Operation Temperature

-20℃ to +50℃

Storage Environment

15～25℃

RH25～65%

IP Level

IP54
