Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
| Lugar de origen | Guangdong, China |
|---|---|
| Nombre de la marca | LDSK |
| Número de modelo | Los requisitos de seguridad de los vehículos |
| Cantidad de orden mínima | 1 |
| Precio | $4100 |
| Tiempo de entrega | 1 día de trabajo |
| Condiciones de pago | D/A, D/P, T/T, Western Union, Moneygram, PayPal |
| Capacidad de la fuente | 5000pcs por mes |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Banda de frecuencia de detección | 300 MHz ~ 6 GHz | Radio de detección | 3km (Entorno urbano) |
|---|---|---|---|
| Tiempo de respuesta | 5s | Tiempo de resistencia | 3 ~ 4h |
| Destacar | Dispositivo de detección anti drones de 6000MHz, dispositivo de detección anti drones portátil | ||
| Resaltar | CRPC+ Technology Handheld Drone Detector,RID Monitoring UAV Detector,Passive Detection Portable Drone Detection Device |
||
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Descripción de producto
3KM Detection Handheld Drone Detection & Positioning System 300MHz–6GHz Full-Band Coverage
Product Description
The Handheld Drone Detection and Positioning Equipment (LDSKL03) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology and RID monitoring and identification technologies to detect, accurately identify, locate, and track low-altitude drones. The system is designed with high integration, compact size, and lightweight, primarily used for portable low-altitude security defense.
Cognitive Radio Protocol Cracking Technology (CRPC 2.0) is the fourth generation of drone defense technology. This technology uses an antenna array to monitor the radio environment within the defense area, continuously collecting radio signals 24 hours a day. The collected signals are transmitted to the signal processing unit, where drone signals are precisely demodulated and cracked. The analyzed drone signals are then sent to the data server via the network, where the data server manages the received drone signals uniformly
Applications include:
- Event security and public safety
- Border and perimeter monitoring
- Airport and restricted area protection
- Industrial facility security patrols
Product Specifications
|
Working Principle |
Passive detection, does not emit any electromagnetic signals |
|
Detection Bands |
900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi； |
|
Sensitivity |
≤-100dBm |
|
Detection Distance |
0~3km+ (Different exist due to different environments and drone type) |
|
Response Time |
≤5s |
|
Detection Quantity |
≥10 Drones (Simultaneous) |
|
Number of Drone Trajectories |
≥10 Drones (Simultaneous) |
|
Position Accuracy |
≤3m (Available for the drones can be decoded) |
|
Drone Library (Geo-Locaation) |
DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands |
|
Dynamic Detection Movement Speed |
≥60km/h (Available for the drones can be decoded) |
|
Screen Size |
6.0 Inch |
|
Battery Capacity |
12000mAh |
|
Endurance |
3～4h |
|
External Interface |
Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1 |
|
Charging Power |
DC9V, 2A |
|
Charging Time |
≤3h(0%-100%) |
|
Power Consumption |
≤15W |
|
Size |
177mm * 89mm * 29.5mm(±2mm) |
|
Weight |
≤580g(±0.05kg,without antenna) ≤46g per antenna |
|
Operation Temperature |
-20℃ to +50℃ |
|
Storage Environment |
15～25℃ RH25～65% |
|
IP Level |
IP54 |

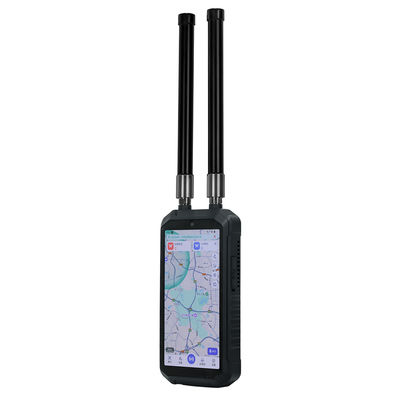

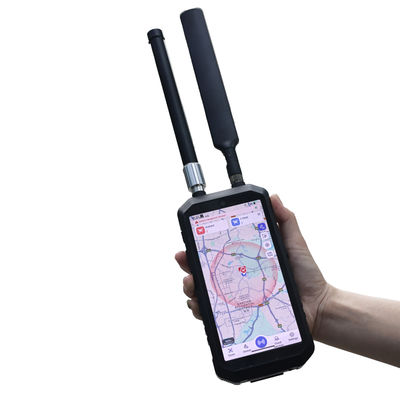

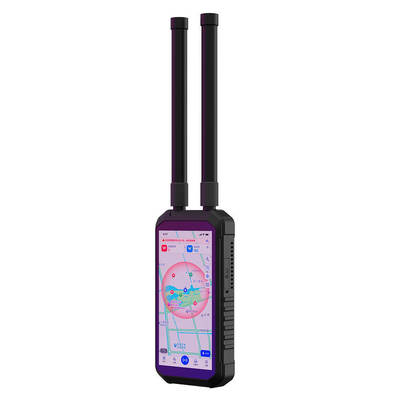

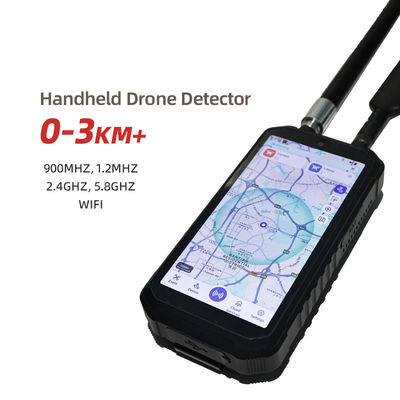

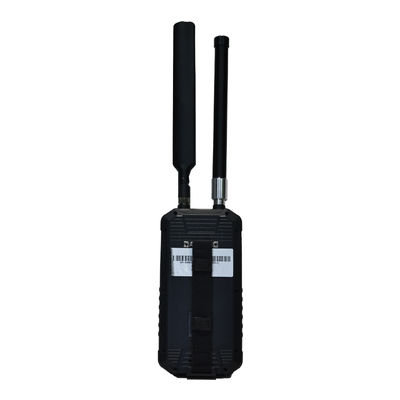

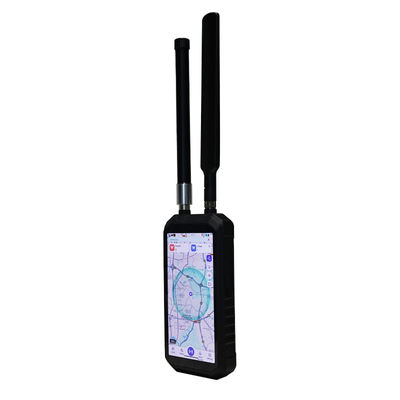

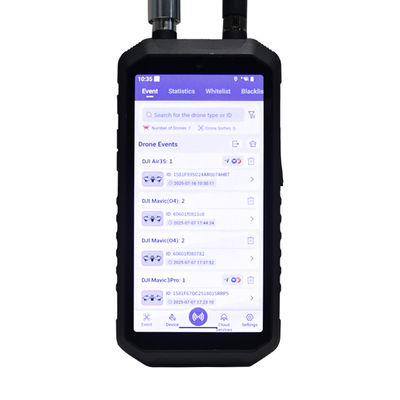

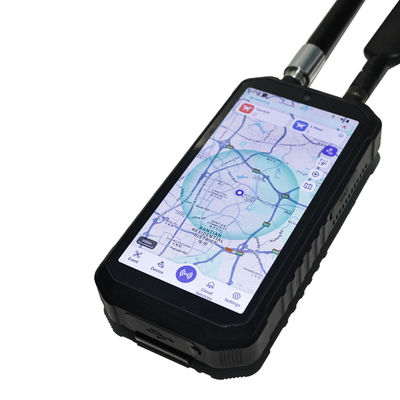

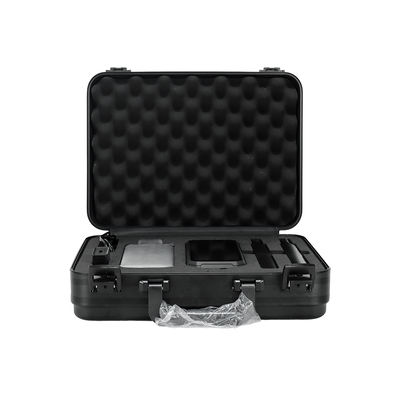

Product Images
